Limovi

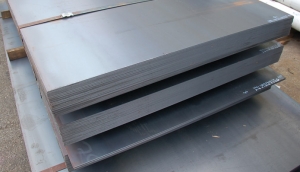

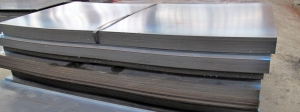

Toplovaljani lim

Dimenzije proizvoda:

debljina (mm) masa (kg/m²) dimenzije table (mm)
1000×2000 1250×2500 1500×3000 1500×6000 2000×6000 2500×12000
težina table (kg)
0.30 2.36 4.72
0.35 2.75 5.51
0.40 3.14 6.28
0.45 3.53 7.06
0.50 3.93 7.86
0.60 4.71 9.42 14.70
0.70 5.50 11.00 17.18
0.80 6.28 12.60 19.70 28.30
1.00 7.85 15.70 24.50 35.00
1.20 9.42 18.80 29.50 42.00
1.50 11.80 23.60 36.70 53.00
1.80 14.10 28.20 44.20 64.00
2.00 15.70 31.40 49.00 71.00
2.50 19.60 39.30 61.00 88.00
3.00 23.60 47.10 73.00 106
3.50 27.50 55.00 86.00 124
4 31.40 62.80 98.00 141 282 377 942
5 39.20 78.50 123 176 352 471 1178
6 47.10 94.20 147 212 424 565 1413
7 55.00 110 172 247 494 660 1650
8 62.80 126 196 282 564 756 1890
9 70.60 141 221 318 636 846 2115
10 78.50 157 245 353 706 942 2355
12 94.20 188 294 424 848 1128 2820
15 118 236 368 530 1060 1416 3540
18 141 282 442 636 1272 1692 4230
20 157 314 490 706 1412 1884 4710
25 196 392 613 833 1666 2352 5880
30 236 472 736 1060 2120 2832 7080
35 275 550 875 1120 2240 3300 8250
40 314 628 980 1410 2820 3768 9420
45 353 706 1103 1539 3078 4236 10590
50 392 784 1226 1666 3332 4704 11760
55 432 864 1349 1893 3786 5184 12960
60 471 942 1470 2116 4232 5652 14130
65 510 1022 1611 2180 4360 6132 15330
70 550 1100 1716 2470 4940 6600 16500
75 589 1178 1855 2530 5060 7068 17670
80 628 1256 1978 2659 5318 7536 18840
85 667 1334 2083 2949 5898 8004 20010
90 707 1414 2206 3176 6352 8484 21210
100 785 1570 2452 3432 6864 9420 23550
110 864 1728 2696 3880 7760 10368 25920
120 942 1884 2958 4069 8138 11304 28260
130 1020 2040 3204 4325 8650 12240 30600
140 1099 2198 3448 4775 9550 13188 32970
150 1178 2356 3676 5292 10584 14136 35340
160 1256 2514 3922 5646 11292 15084 37710
170 1335 2670 4184 5835 11670 16020 40050
180 1413 2828 4412 6352 12704 16968 42420
190 1492 2984 4656 6702 13404 17904 44760
200 1570 3140 4918 6891 13782 18840 47100

Tehničke karakteristike proizvoda

Uporedna tabela kvaliteta

S 235 JRG2S 235 JRR St 37-2Č0361

SRPS EN 10025 EN 10025-2 DIN 17100 SRPS C.B0.500*
S 235 JO S 235 JO St 37-3 U Č0362
S 235 J2G3 S 235 J2 St 37-3 N Č0363
S 275 JO S 275 JR St 44-2 Č0451
S 275 JR S 275 JO St 44-3 U Č0452
S 275 J2G3 S 275 J2 St 44-3 N Č0453
S 275 JR S 355 JR / Č0561
S 355 JO S 355 JO St 52-3 U Č0562
S 355 J2G3 S 355 J2 St 52-3 N Č0563
S 355 K2 S 355 K2 / /
